Locking Assemblies Z2 Series The use of locking assemblies makes the manufacture and installation of machine parts very easy and simple. The shaft and bore where the locking assemblies is fixed don need high precision tolerance in tight fits. Heating，cooling or pressing device is not needed you only need tightening the locking bolt with appropriate torque．The adjustment is easy，wheel hub can be also easily adjusted to required position on the shaft. Sometimes locking assemblies can also be used to connect part which have poor welding character.
Locking Assemblies Z5 Series

Locking Assemblies Z5 Series

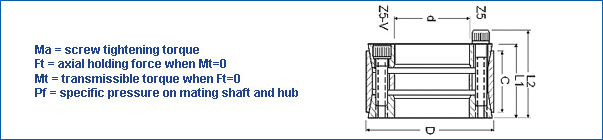

Locking Assemblies Z5 Series. All contact surfaces including threads and heads of locking screws have to be clean and covered with an oil film. Shaft hub and Locking Assembly are to be assembled in this condition. Tighten locking screws lightly and position hub. Tighten locking screws evenly crosswise up to the nominated torque (tighten in 2-3 stages). Re-check the tightening torque of the locking screws all the way round. When no screw can be tightened further with the torque wrench set to the tightening torque Ma the fitting process is completed.

Locking Assemblies Z6 Series

Locking Assemblies Z6 Series

Locking Assemblies Z6 Series Locking assemblies is easy to assembly and disassemble，and has good interchangeability. Since locking assemblies can joint the shaft and hub that has big fitting clearance，the work pieces can be easy to dis-assembly by loosening the locking bolt. Because locking assemblies fits tightly around the shaft-hub，the contact surface is hard to be rusted，and it is convenient to disassemble.
Locking Assemblies Z8 Series

Locking Assemblies Z8 Series

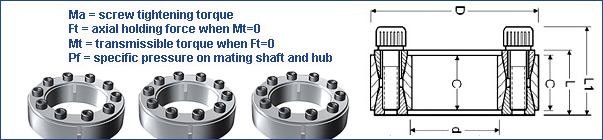

Locking Assemblies Z8 Series Presently locking assemblies is widely applied in various kinds of equipment such as weaving，packing，machine tool，metallurgy etc. Locking assemblies made in our company has gain user praise by its high quality，well-service and rational price. Beside products made in accordance with the standard GB5867-86，our company can design and manufacture nonstandard product according to the request of user.
Shrink Discs Zero Series

Shrink Discs Zero Series

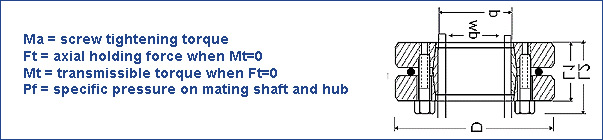

Shrink Discs Zero Series Before fitting to shafts remove any spacers that may have been installed between pressure plates for transport reasons. Loosely tighten the screws such that the inner ring will still rotate. Grease the hub on which the inner ring is to be fitted. Slide the shrink disc on to the hub. Slide the hub on to the solid shaft. Both hub bore and solid shaft surface must be ungreased. Ensure that the pressure plates are parallel by carefully tightening screws at a low torque. Begin tightening the screws to full tension Ma evenly in a clockwise direction (not crosswise). Repeat the clockwise tensioning procedure several times until all screws are tensioned to the recommended torque Ma.
Minimum Hub Diameter Z2 Series

Minimum Hub Diameter Z2 Series

Minimum Hub Diameter Z2 Series Locking assemblies has a long service life and high intensity. It depends on the friction force to transmit load，thus the intensity of the work piece connected will not be weaken by key-way on it. Since there is not relative movement，no wear of the work piece will be made.
Minimum Hub Diameter Z5 Series

Minimum Hub Diameter Z5 Series

Minimum Hub Diameter Z5 Series Locking assemblies can bear multiple load and its structure have various type. A number of locking assemblies could be use together with according to the bearing load. When working in condition of overload，it will lose connecting function to protect the equipment from damages
Minimum Hub Diameter Z6 Series

Minimum Hub Diameter Z6 Series

Minimum Hub Diameter Z6 Series Presently locking assemblies is widely applied in various kinds of equipment such as weaving，packing，machine tool，metallurgy etc. Locking assemblies made in our company has gain user praise by its high quality，well-service and rational price. Beside products made in accordance with the standard GB5867-86，our company can design and manufacture nonstandard product according to the request of user.
Minimum Hub Diameter Z8 Series

Minimum Hub Diameter Z8 Series

Minimum Hub Diameter Z8 Series he use of locking assemblies makes the manufacture and installation of machine parts very easy and simple. The shaft and bore where the locking assemblies is fixed don＇t need high precision tolerance in tight fits. Heating，cooling or pressing device is not needed，you only need tightening the locking bolt with appropriate torque．The adjustment is easy，wheel hub can be also easily adjusted to required position on the shaft. Sometimes locking assemblies can also be used to connect part which have poor welding character.
Z - Lock Interchange

Z - Lock Interchange

Z - Lock Interchange Presently locking assemblies is widely applied in various kinds of equipment such as weaving，packing，machine tool，metallurgy etc. Locking assemblies made in our company has gain user praise by its high quality，well-service and rational price. Beside products made in accordance with the standard GB5867-86，our company can design and manufacture nonstandard product according to the request of user.
