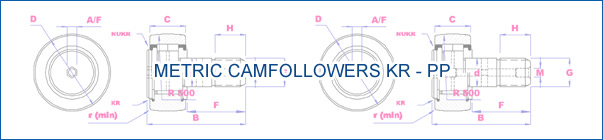

Metric Camfollowers

Camfollowers MM SERIES :KR-PP : NUKR: Universal Bearings Company UBC offer the widest range of cam followers in the UK with over 1 400 standard designs to choose from. We also offer bearings in metric dimensions equivalent to ISO standards series in both European and Asian versions. Available in stud or yoke versions and are available in three types of internal construction: Full complement needle rollers Retainer type needle rollers Cylindrical rollers.

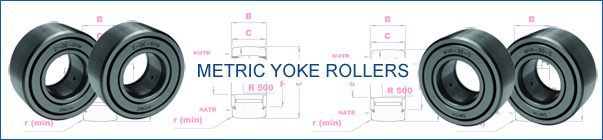

Metric Yoke Rollers

Yoke Rollers METRIC SERIES NATR-PP - NUTR: Universal Bearings Company UBC a complete line of stud type and yoke type cam followers for industrial applications. These bearings are available in steel stainless steel and with engineered plastic internal bushings. We specialize in engineered cam followers to fit specific applications. High Precision Anti-friction Stud and Yoke style Cam Followers Needle roller bearings For industrial applications. Comprise of 52100 bearing steel and 440C stainless steel. Applications Food Processing Material Handling Packaging Bottling Refuse and Recycling Equipment Utility Trucks Primary metal processing Heavy Industries Construction Equipment Steel fabrication Conveyors and Conveying Printing Aircraft & Aerospace

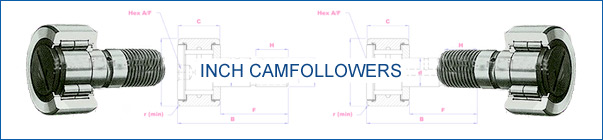

Inch Camfollowers

Inch Camfollowers full line of cam followers from 1-2 to 10 inch outside diameter sizes. Technical innovation and cost-saving features have distinguished UBC cam followers from competitors. Contact UBC engineers for assistance in solving difficult bearing challenges in your application.

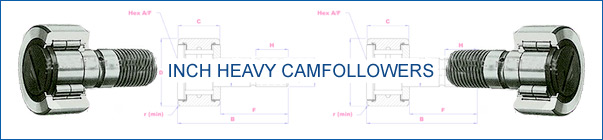

Inch Heavy Camfollowers

Inch Heavy Camfollowers Series CFH-SB: Universal Bearings Company UBC produces a full line of cam followers from 1-2 to 10 inch outside diameter sizes. Technical innovation and cost-saving features have distinguished UBC cam followers from competitors. Contact UBC engineers for assistance in solving difficult bearing challenges in your application.

Inch Yoke Rollers

Yoke Rollers Inch SERIES CYR: Universal Bearings Company UBC All sealed cam yoke rollers have a black oxide finish on all exposed surfaces.Types of Designs:This kind of bearing has multiple structural styles for the choice of customers such as narrow & broad series with or without inner races cages ribs or sealings. It can be designed according to the special structural requirements of customers as well. Product Precision Accuracy: Dimensional tolerance and geometrical accuracy is based on GB-T5801. Mutual difference of needle roller diameter is 2Î¼m and the precision grade is G2 (ISO GB309).The diameter of inscribed circle conforms to tolerance grade F6 before the fitting of outer ring with cage and roller assembly.Bearing radial running clearance conforms to the value defined by 0 group of GB-T4604.Special precision grade is based on GB-T307.1 For fuller information on the special requirements of bearing running clearance inscribed circle and precision grade please contact this company.Materials:Material for needle roller is GCr15 bearing steel quench-hardening HRC60---65.Material for inner and outer races is GCr15 bearing steel quench-hardening HRC 61---65.Material for cages is quality low-carbon steel or reinforced nylon.Special Directions:Bearing running clearance and inner-cutting roundness should be regulated according to different conditions. Machine tools should be used for press-in fitting or thermal fitting of the bearing Limited by plastic cages (suffixed with TN) and sealing-element material operating temperature is -300C---+1000C.For general-disposition design of bearings refer to the relevant recommendation in the applied technology of rolling bearings.

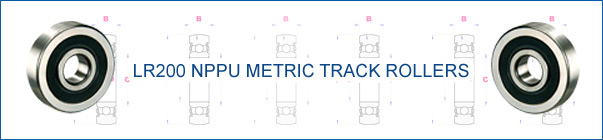

Metric Track Rollers

Metric Track Rollers LR200 NPPU Universal Bearings Company UBC Specially designed to withstand heavy rolling or shock loads on track type and cam controlled equipment for automotive industrial and airframe applications. Constructed from balls rollers or an economical sector pin design. Materials such as carbon steel high alloy steel stainless aluminum engineered polymers. Inch or metric dimensions. Threaded non-threaded or eccentric shafts. Screwdriver slot hexagonal socket or hexagonal shaft mountings.Cylindrical or crowned outer ring profile. Lubrication to accommodate varying temperature extremes. Sealed or un-sealed designs and multiple coatings plating\s and post treatments available for different manufacturing environments.

Metric and Inch Camfollower Eccentric Bushes

Eccentric Adjuster Brushes, Metric and Inch Camfollower Eccentric Bushes stud type truck rollers ntn cam ... followers stud type track roller this is a track stud type track rollers are applied to eccentric roller guide roller rocker arm roller etc similarly to the roller followers one end of the stud is so threaded as to the outer ring of the roller follower follower type applied shaft diameter mm

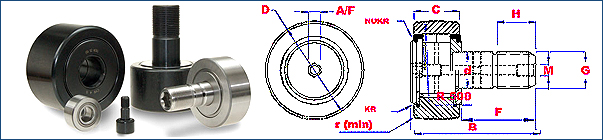

Camfollower Component Chart

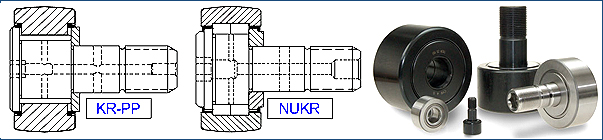

Camfollower Yoke Roller Interchange

Camfollower Yoke Roller Interchange Universal Bearings Company UBC produces a full line of cam followers from 1-2 to 10 inch outside diameter sizes. Technical innovation and cost-saving features have distinguished RBC cam followers from competitors. Contact engineers for assistance in solving difficult bearing challenges in your application.

Inches to Millimeters Camfollowers Chart

Inches to Millimeters Conversion Cam Followers

Millimeters to Inches Camfollowers Chart

Millimeters to Inches Conversion Camfollowers
