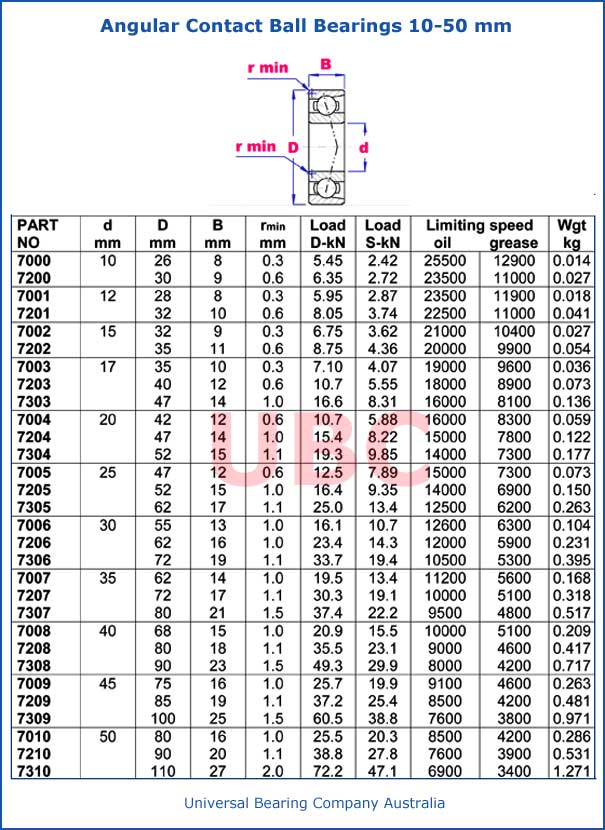

Angular Contact Ball Bearings 10-50 mm
Angular Contact Ball Bearings 10 - 50 mm 7000 7200 7001 7201 7002 7202 7003 7203 7303 7004 7204 7304 7005 7205 7305 7006 7206 7306 7007 7207 7307 7008 7208 7308 7009 7209 7309 7010 7210 7310
Angular Contact Ball Bearings 10 - 50 mm, UBC, Angular contact ball bearings have raceways in the inner and outer rings, that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads i.e. simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane along which the load is transmitted from one raceway to another and a line perpendicular to the bearing axis angular contact ball bearings are produced in a wide variety of designs and sizes.
Universal Bearing Company Australia
Download catalogue
The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane along which the load is transmitted from one raceway to another and a line perpendicular to the bearing axis angular contact ball bearings are produced in a wide variety of designs and sizes.
